Folkestone: 1-3 Ingles Road: ground floor plan

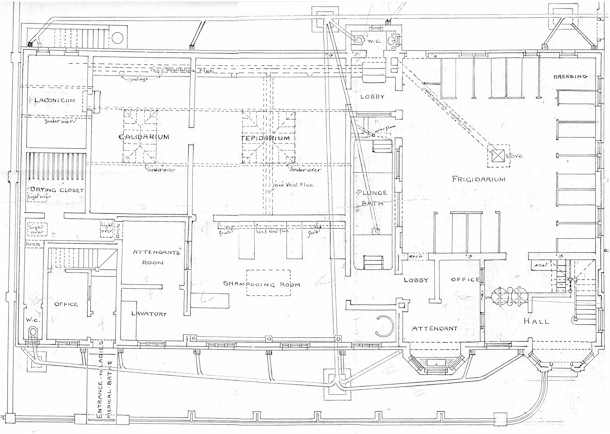

Ground floor plan

The ground floor, taken from the plans of the architect, Andrew Bromley.

At the top left corner of the plan can be seen the circular cover of the coal chute and steps leading down to the furnace and fuel store underneath the laconicum and part of the calidarium. The two sets of stairs towards the bottom of the plan lead up to the two sets of slipper baths above.

This page enlarges an image or adds to the information found below:

The Turkish Bath, Folkestone
